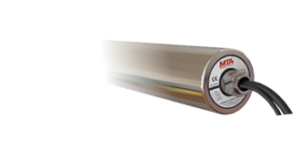

Motorized rollers are electrically driven conveyor rollers. The motor, control electronics and power stage are integrated into the roller tube.
For the transport of small load carriers, containers and parcels up to heavy pallets, a scalable product portfolio is available. Mechanical output, mounting length, diameter and tube characteristics can be individually adapted.
Standardized interfaces ensure easy integration into established industrial standards.
| Type | Diameter [mm] | Nominal voltage [VDC] | Power [W] | Speed [m/s] | Nominal torque [Nm] | Max. torque [Nm] | Nominal current [Arms] | Max. current [Arms] |
|---|---|---|---|---|---|---|---|---|
| MRD50-AA | 50 | 24 | 27 | 1,00 | 0,68 | 1,70 | 2,0 | 5,8 |
| MRD50-AB | 50 | 24 | 40 | 1,00 | 1,00 | 3,40 | 2,7 | 9,3 |
| MRD50-AC | 50 | 24 | 42 | 2,00 | 0,52 | 2,00 | 2,4 | 11,6 |
| MRD50-AD | 50 | 24 | 55 | 2,00 | 0,68 | 2,40 | 3,1 | 9,9 |
| MRD50-BA | 50 | 48 | 28 | 1,00 | 0,70 | 1,80 | 1,0 | 4,6 |
| MRD50-BB | 50 | 48 | 40 | 1,00 | 1,01 | 3,60 | 1,4 | 4,9 |
| MRD50-BC | 50 | 48 | 44 | 2,00 | 0,55 | 1,85 | 1,6 | 6,0 |
| MRD50-BD | 50 | 48 | 77 | 2,00 | 0,96 | 2,90 | 2,7 | 7,7 |
| MRG50-AB78 | 50 | 24 | 58 | 0,23 | 6,24 | 17,33 | 3,3 | 10,0 |
| MRG50-AB49 | 50 | 24 | 58 | 0,37 | 3,92 | 10,89 | 3,3 | 10,0 |
| MRG50-AB30 | 50 | 24 | 58 | 0,60 | 2,40 | 6,67 | 3,3 | 10,0 |
| MRG50-AB18 | 50 | 24 | 58 | 1,00 | 1,44 | 4,00 | 3,3 | 10,0 |
| MRG50-AB13 | 50 | 24 | 58 | 1,38 | 1,04 | 2,89 | 3,3 | 10,0 |
| MRG50-AB9 | 50 | 24 | 58 | 2,00 | 0,72 | 2,00 | 3,3 | 10,0 |
| MRG50-BB78 | 50 | 48 | 70 | 0,23 | 7,58 | 17,33 | 1,9 | 5,1 |
| MRG50-BB49 | 50 | 48 | 70 | 0,37 | 4,76 | 10,89 | 1,9 | 5,1 |
| MRG50-BB30 | 50 | 48 | 70 | 0,60 | 2,92 | 6,67 | 1,9 | 5,1 |
| MRG50-BB18 | 50 | 48 | 70 | 1,00 | 1,75 | 4,00 | 1,9 | 5,1 |
| MRG50-BB13 | 50 | 48 | 70 | 1,38 | 1,26 | 2,89 | 1,9 | 5,1 |
| MRG50-BB9 | 50 | 48 | 70 | 2,00 | 0,88 | 2,00 | 1,9 | 5,1 |
| Type | Diameter [mm] | Nominal voltage [VDC] | Power [W]* | Speed [m/s] | Nominal torque [Nm]* | Max. torque [Nm] | Nominal current [Arms] | Max. current [Arms] |
|---|---|---|---|---|---|---|---|---|
| MRG80-BC56 | 80 | 48 | 400 | 0,30 | 53,48 | 70,00 | 5,0 | 16,7 |
| MRG80-BC42 | 80 | 48 | 400 | 0,40 | 40,10 | 70,00 | 5,0 | 21,3 |
| MRG80-BC30 | 80 | 48 | 400 | 0,56 | 24,14 | 50,00 | 5,0 | 21,3 |
| MRG80-BC17 | 80 | 48 | 400 | 1,00 | 13,68 | 28,30 | 5,0 | 21,3 |
| MRG89-BC56 | 89 | 48 | 400 | 0,33 | 53,40 | 70,00 | 5,0 | 16,7 |
| MRG89-BC42 | 89 | 48 | 400 | 0,45 | 40,10 | 70,00 | 5,0 | 21,3 |
| MRG89-BC30 | 89 | 48 | 400 | 0,62 | 28,60 | 50,00 | 5,0 | 21,3 |
| MRG89-BC17 | 89 | 48 | 400 | 1,10 | 16,22 | 28,3 | 5,0 | 21,3 |
